Description of the OAuth 2.0 authorization code flow

General Oauth 2.0

OAuth2 is an authentication standard used often for delegating user access to a third-party Application like web app, web api or a native app.

You can use the OAuth 2.0 authorization code grant in apps installed on a device to gain access to protected resources, such as Zehnder Cloud API.
This chapter is language-independent and describes the general authorization flow. We describe how to send and receive HTTP messages without using any open-source libraries. If possible, we recommend using the Microsoft Authentication Libraries (MSAL).
For more specific information how to use the MSAL-Library with the Cloud API look at this chapter.

The OAuth 2.0 authorization code flow is described in section 4.1 of the OAuth 2.0 specification. You can use it for authentication and authorization in most application types, including web applications, single-page applications, and natively installed applications. You can use the OAuth 2.0 authorization code flow to securely acquire access tokens and refresh tokens for your applications, which can be used to access resources that are secured by an authorization server. The refresh token allows the client to acquire new access (and refresh) tokens once the access token expires, typically after one hour.

This chapter focuses on the public clients OAuth 2.0 authorization code flow. A public client is any client application that cannot be trusted to securely maintain the integrity of a secret password. This includes single-page applications, mobile apps, desktop applications, and any application that doesn't run on a server.

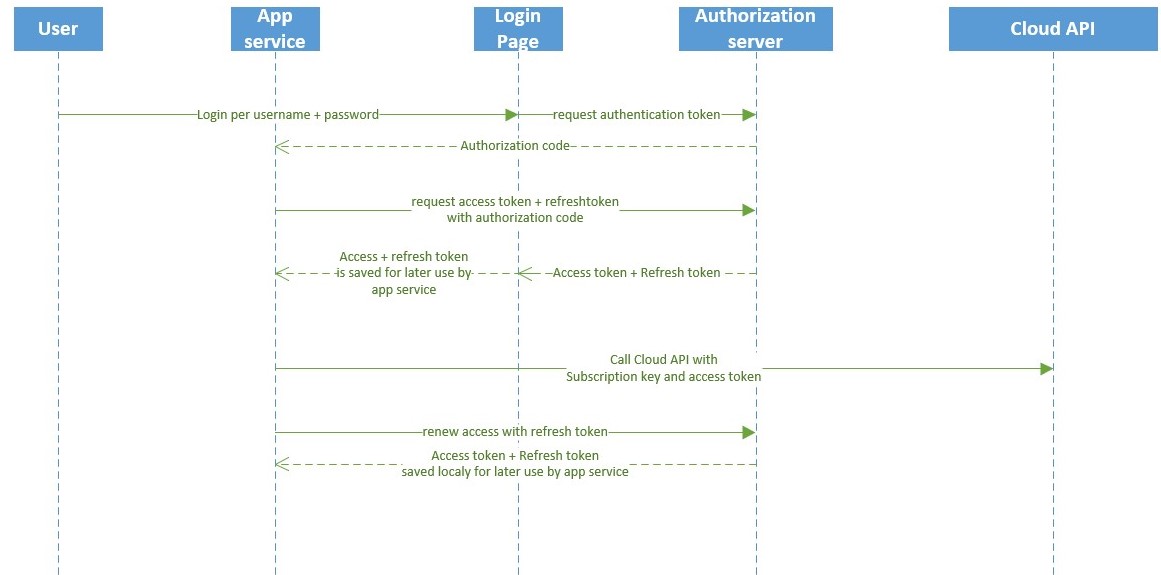

Here is an example of a of the information flow:
In this Flow the "app service" is the service make use of OAuth2 to get access to the "Cloud API" (web api) in the name of the user.

Overview authorization code flow

1. Get an authorization code.
   Authorization code is needed to get an access token.
   This is the interactive part of the authentication, where user must type his/her username (mail-address) and password.

2. Get an access token.
   With the authorization code the access token can be requested by the identity provider.

3. Use the token.
   The access token is used to get access to the devices of the owner.

4. Refresh the token.
   The refresh token can be used for renewing the access token in the background without user interaction.

Important Information:
To focus on the essential information for the understanding of the authorization code flow that is needed to make use of our Cloud API, not all parameters are included in the examples below. For a full list of parameters please visit the official Azure B2C authorization code flow here

Redirect URI setup required for single-page apps

The authorization code flow uses the redirect_uri in the request, to determine the response address, where the authorization code is sent to, after successful authentication.

The following redirect URLs are configured for a Single Page Application (SPA): https://localhost:5000 or http://localhost:5000.
The former certainly provides a "warning" due to missing certificate or local certificate

For a Web APP use following redirect_uri: http://localhost

Remark:
The redirect uri is the address of your local web page you are using to provide the authentication page for the end user and include the code consuming the tokens from the authorization-code-flow. For example the MSAL-Library.

1. Get an authorization code

The authorization code flow begins with the client directing the user to the /authorize endpoint. This is the interactive part of the flow, where the user acts. In this request, the client indicates in the scope parameter the permissions that it needs to acquire from the user. The following three examples (with line breaks for readability) each use a different user flow. User flow is the policy describing the user experience of the end user by the login process. For example, which identity provider (Amazon, Google, Microsoft, ...) are allowed Multi factor authentication is mandatory or not even the password complexity that can be used for the login.

GET https://{tenant}.b2clogin.com/{tenant}.onmicrosoft.com/{policy}/oauth2/v2.0/authorize?
client_id=90c0fe63-bcf2-44d5-8fb7-b8bbc0b29dc6 &response_type=code
&redirect_uri=urn%3Aietf%3Awg%3Aoauth%3A2.0%3Aoob
&response_mode=query
&scope=90c0fe63-bcf2-44d5-8fb7-b8bbc0b29dc6%20offline_access
&state=arbitrary_data_you_can_receive_in_the_response
&code_challenge=YTFjNjI1OWYzMzA3MTI4ZDY2Njg5M2RkNmVjNDE5YmEyZGRhOGYyM2IzNjdmZWFhMTQ1ODg3NDcxY2Nl
&code_challenge_method=S256

At this point, the user is asked to complete the user flow's workflow. This might involve the user entering their username and password, signing in with a social identity, signing up for the directory, or any other number of steps. User actions depend on how the user flow is defined.

After the user completes the user flow, Azure AD returns a response to your app at the value you used for redirect_uri. It uses the method specified in the response_mode parameter. The response is the same for each of the user action scenarios, independent of the user flow that was executed.

A successful response that uses response_mode=query looks like this:

GET urn:ietf:wg:oauth:2.0:oob?
code=AwABAAAAvPM1KaPlrEqdFSBzjqfTGBCmLdgfSTLEMPGYuNHSUYBrq... // the authorization_code, truncated
&state=arbitrary_data_you_can_receive_in_the_response // the value provided in the request

Error responses also can be sent to the redirect URI so that the app can handle them appropriately:

GET urn:ietf:wg:oauth:2.0:oob?
error=access_denied
&error_description=The+user+has+cancelled+entering+self-asserted+information
&state=arbitrary_data_you_can_receive_in_the_response

2. Get an access token

Now that you've acquired an authorization code, you can redeem the code for a token to the intended resource by sending a POST request to the /token endpoint.

You can also request an access token for your app's own back-end Web API by convention of using the app's client ID as the requested scope (which will result in an access token with that client ID as the "audience"):

POST https://{tenant}.b2clogin.com/{tenant}.onmicrosoft.com/{policy}/oauth2/v2.0/token HTTP/1.1
Content-Type: application/x-www-form-urlencoded
grant_type=authorization_code&client_id=90c0fe63-bcf2-44d5-8fb7-b8bbc0b29dc6&scope=90c0fe63-bcf2-44d5-8fb7-b8bbc0b29dc6 offline_access
&code=AwABAAAAvPM1KaPlrEqdFSBzjqfTGBCmLdgfSTLEMPGYuNHSUYBrq...
&redirect_uri=urn:ietf:wg:oauth:2.0:oob
&code_verifier=ThisIsntRandomButItNeedsToBe43CharactersLong

A successful token response looks like this:

{
  "not_before": "1442340812",
  "token_type": "Bearer",
  "access_token": "eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiIsIng1dCI6Ik5HVEZ2ZEstZnl0aEV1Q...",
  "scope": "90c0fe63-bcf2-44d5-8fb7-b8bbc0b29dc6 offline_access",
  "expires_in": "3600",
  "refresh_token": "AAQfQmvuDy8WtUv-sd0TBwWVQs1rC-Lfxa_NDkLqpg50Cxp5Dxj0VPF1mx2Z...",
}

Error responses look like this:

{
  "error": "access_denied",
  "error_description": "The user revoked access to the app.",
}

3. Use the token

Now that you've successfully acquired an access token, you can use the token in requests to your back-end web APIs by including it in the Authorization header:

GET /tasks Host: mytaskwebapi.com Authorization: Bearer eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiIsIng1dCI6Ik5HVEZ2ZEstZnl0aEV1Q...

4. Refresh the token

Access tokens and ID tokens are short-lived. After they expire, you must refresh them to continue to access resources. To do this, submit another POST request to the /token endpoint. This time, provide the refresh_token instead of the code:

POST https://{tenant}.b2clogin.com/{tenant}.onmicrosoft.com/{policy}/oauth2/v2.0/token HTTP/1.1
Content-Type: application/x-www-form-urlencoded
grant_type=refresh_token&client_id=90c0fe63-bcf2-44d5-8fb7-b8bbc0b29dc6&scope=90c0fe63-bcf2-44d5-8fb7-b8bbc0b29dc6 offline_access&refresh_token=AwABAAAAvPM1KaPlrEqdFSBzjqfTGBCmLdgfSTLEMPGYuNHSUYBrq...&redirect_uri=urn:ietf:wg:oauth:2.0:oob

A successful token response looks like this:

{
  "not_before": "1442340812",
  "token_type": "Bearer",
  "access_token": "eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiIsIng1dCI6Ik5HVEZ2ZEstZnl0aEV1Q...",
  "scope": "90c0fe63-bcf2-44d5-8fb7-b8bbc0b29dc6 offline_access",
  "expires_in": "3600",
  "refresh_token": "AAQfQmvuDy8WtUv-sd0TBwWVQs1rC-Lfxa_NDkLqpg50Cxp5Dxj0VPF1mx2Z...",
}

Error responses look like this:

{
  "error": "access_denied",
  "error_description": "The user revoked access to the app.",
}
